Case study / Technical development
A garment development story told through form, construction, fit and visual resolution.
The development journey
Each stage resolves a different question. Together, the documents create a coherent handover from design intent to a product a manufacturer can understand.
Confidentiality note Some details in the original technical documents have been intentionally blurred to comply with NDA obligations and client approval requirements.
Stage 01 / Visual direction
The color CAD establishes the hoodie’s front, back and side views. It aligns the silhouette, graphic language and primary feature placement before technical detail is added.
Stage 02 / Technical definition
The technical sketches move from appearance to build. Construction callouts connect the hood, pocket, rib finishes, seams and artwork positions to the same garment established in the flat.

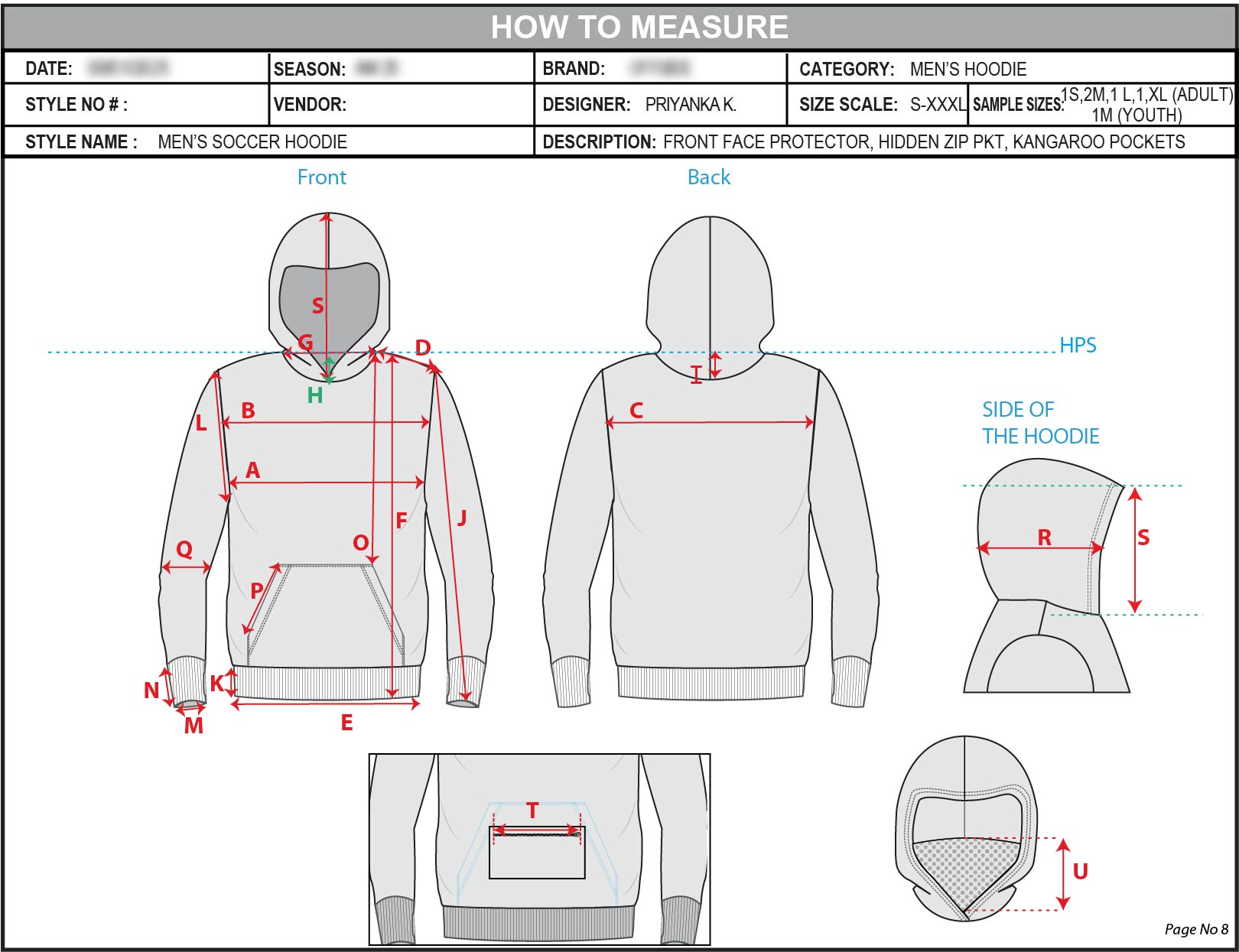

Stage 03 / Fit system
The guide maps each point of measure to the garment. The corresponding sheet carries those references across the stated size range, creating a shared language for review and manufacture.
Values and client details shown here remain NDA-protected in the original files.
Stage 04 / Graphic application
The artwork sheet translates the visual identity into application guidance. Label, patch, fold and stitch information is tied back to defined locations on the hoodie.

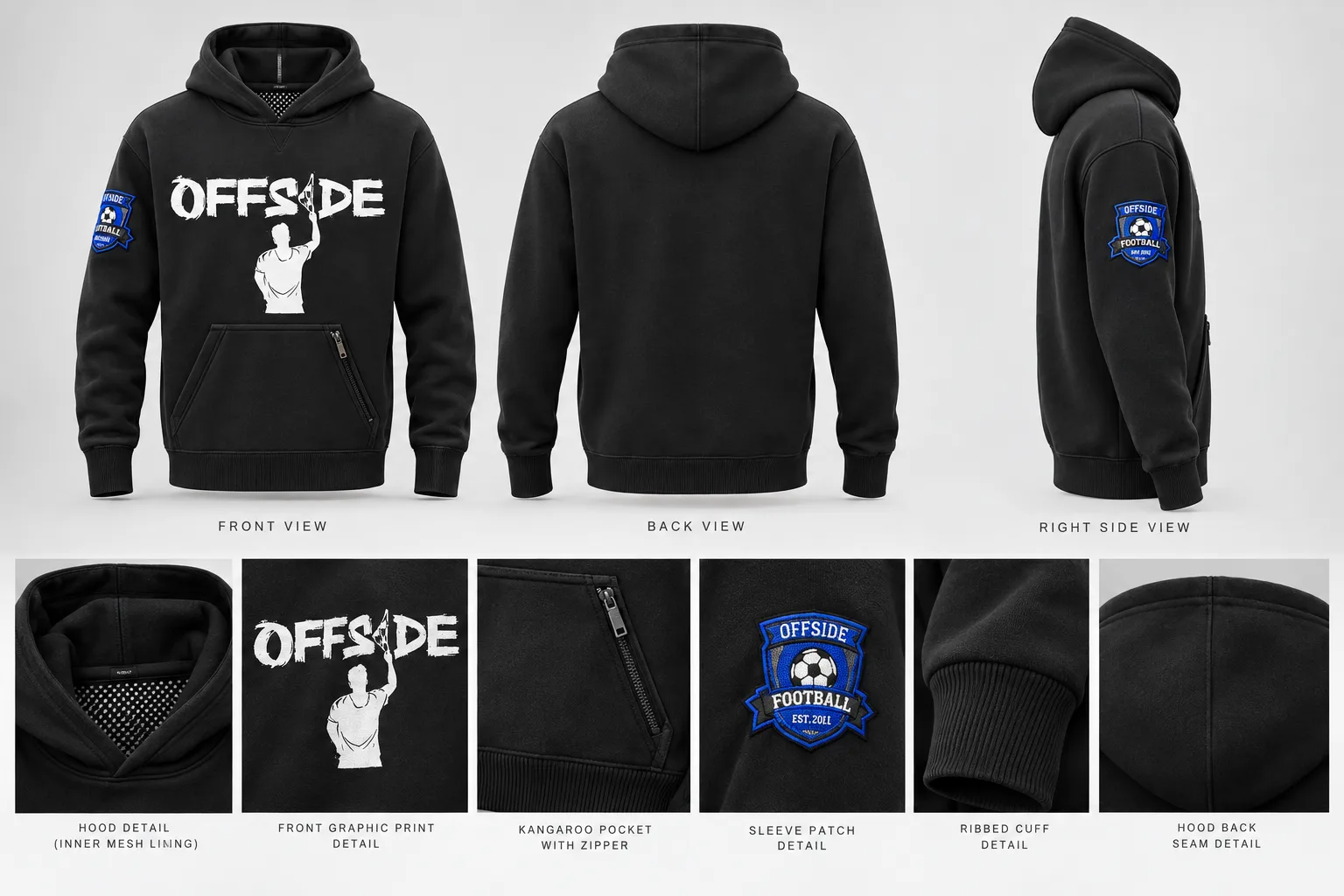

Stage 05 / Visual resolution
The 3D render brings the preceding decisions together in one visual record: full garment views followed by close details of the hood, artwork, pocket, patch, cuff and back seam.
